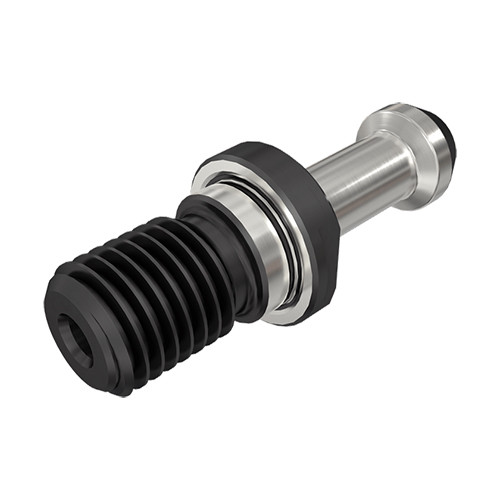

PS BT50 90 M24 MAS3 B
| Shank Size (SS) | 50 | Measurement Type | Inch |
| Body Diameter (BD) | 0.906″ | Tool Type | PS BT-MAS |
| Connection Retention Knob Thread Size (CRKS) | M24 | Body Half Taper Angle (BHTA) | 90 Degrees |
| Body Length (LB) | 1.378″ | Body Material | Steel |
| Overall Length (OAL) | 3.346″ | Flange to Knob Length | 0.91″ |
| Body Length_2 (LB_2) | 1.772″ | Flange to Angle Length | 0.71″ |
| Application | | Collets & Accessories | |
Product Features
| Family Description | BT pull stud with MAS retention knob. | Country of Origin | Italy |

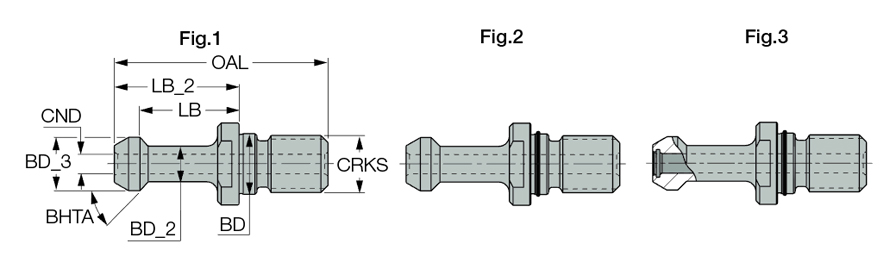

| Remarks | Fig 1: Without or with coolant holes (coolant holes only in items with a B suffix) Fig 2: With coolant holes and external O-ring Fig 3: With coolant holes, external and internal O-rings |
Shipping Info
Package Weight
0.606
