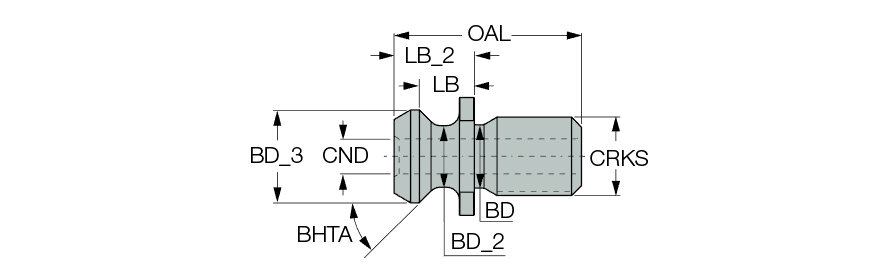

PS CAT40 45 5/8 ANSI
| Shank Size (SS) | 40 | Measurement Type | Inch |
| Body Diameter (BD) | 0.74″ | Tool Type | PS CAT |
| Connection Retention Knob Thread Size (CRKS) | 5/8-11 | Body Half Taper Angle (BHTA) | 45 Degrees |
| Body Length (LB) | 0.439″ | Body Material | Steel |
| Overall Length (OAL) | 1-1/2″ | Flange to Knob Length | 0.91″ |
| Body Length_2 (LB_2) | 0.64″ | Flange to Angle Length | 0.71″ |
| Application | | Collets & Accessories | |
Product Features
| Family Description | CAT Pull Stud ANSI Retention Knobs | Country of Origin | Italy |
| Remarks | Coolant holes only in items with a B suffix |
Shipping Info
Package Length
2.00000
Package Width
1.00000
Package Height
1.00000
Package Weight
0.141
