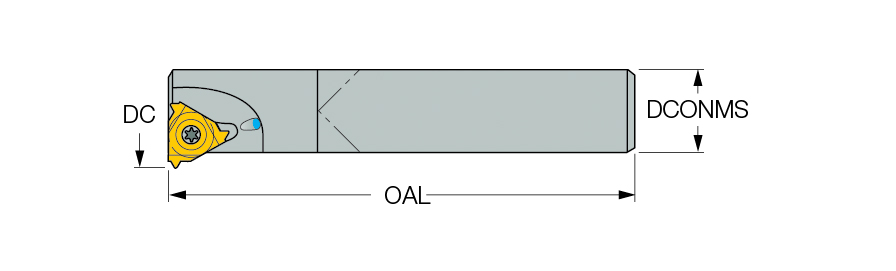

MTET D13.2-1-C10C-11
| Cutting Diameter (DC) | 13.2 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Overall Length (OAL) | 150 mm | Cutting Position | External |
| Flute Count (NOF) | 1 | Measurement Type | Metric |
| Shank Type | Round | Grade | 3102179 |
| Body Material | Steel | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Indexable threading endmills with cylindrical shanks and coolant holes for single point inserts. | Country of Origin | Israel |
| Remarks | Tool cutting diameter should not exceed 2/3 of thread bore diameter |
Shipping Info
Package Weight
0.366
