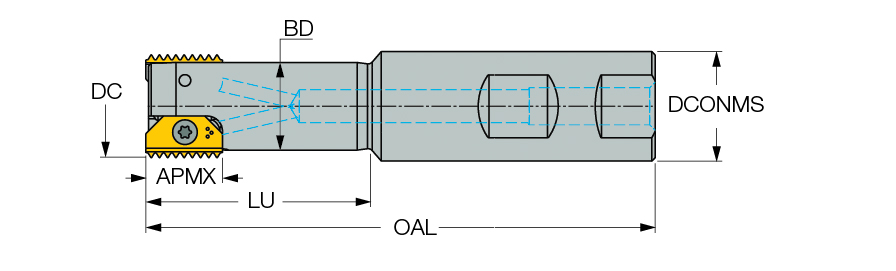

| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Depth of Cut Maximum (APMX) | 40 mm | Cutting Position | External |
| Overall Length (OAL) | 153 mm | Tool Type | Indexable thread mills |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Usable Length (LU) | 78 mm | Grade | 3102179 |
| Shank Type | Weldon | Connection Code Machine Side (CCMS) | Weldon |
| Body Material | Steel | Body Diameter (BD) | 38 mm |
Product Features

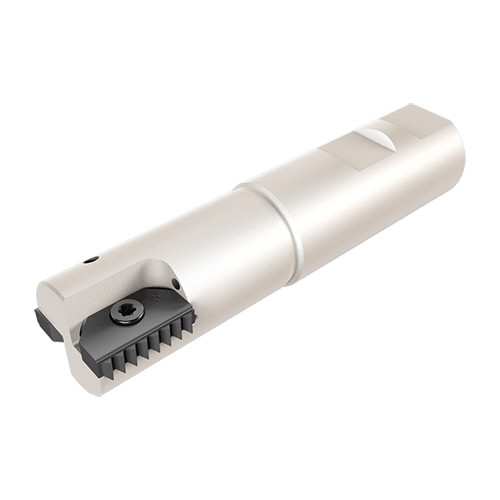

| Family Description | Multi insert threading endmills with Weldon shanks. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info. All endmills are equipped with a bore for internal coolant Tool cutting diameter should not exceed 2/3 of thread bore diameter |
Shipping Info
Package Weight
3.042
Related Documentation
Minimum bore should be one-third larger than D. All endmills are equipped with a bore for coolant through.
