EFF-S4-10 040/30C10R1.6M IC903
SQ End Mill; 10 mm Dia. × 0.5 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 2.01 mm RE ; 4 FL ; 30 mm LBS ; Carbide ; AlTiN

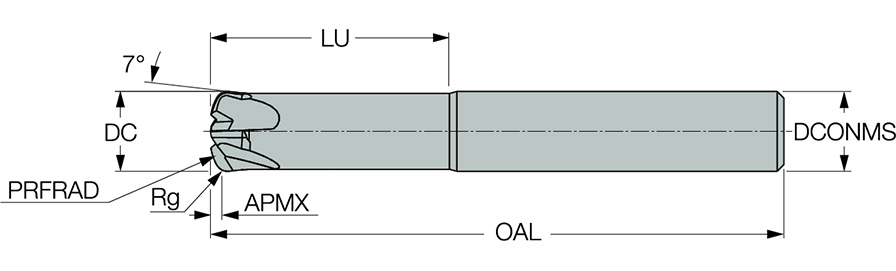

| Cutting Diameter (DC) | 10 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Grade | IC903 |
| Depth of Cut Maximum (APMX) | 0.5 mm | Neck Diameter (DN) | 9.5 mm |
| Overall Length (OAL) | 72 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Fast Feed Solid Endmill |
| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.5 mm/tooth |
| Flute Count (NOF) | 4 | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Shank Type | Round | Coolant Supply Property (CSP) | External |
| End Shape | Corner Radius | Body Material | Carbide |
| Usable Length (LU) | 30 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Fast Feed Milling | Helical Interpolation | Profiling | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | e9 |
| Corner Radius (RE) | 2.01 mm | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features

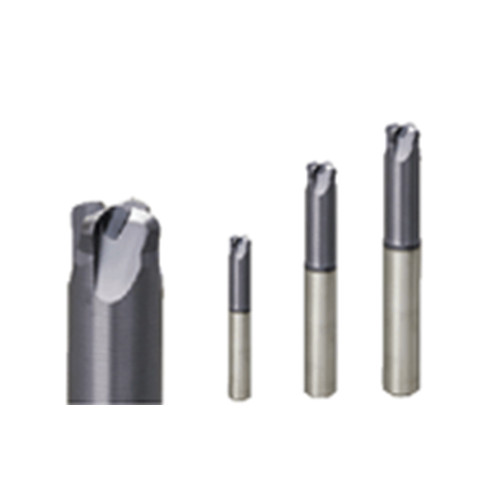

| Family Description | High productivity solid carbide endmills. For cast iron, alloy and hardened steel up to 65 HRC stainless steel, titanium and nickel based alloys. | Country of Origin | Israel |
Shipping Info
Package Weight
0.188
