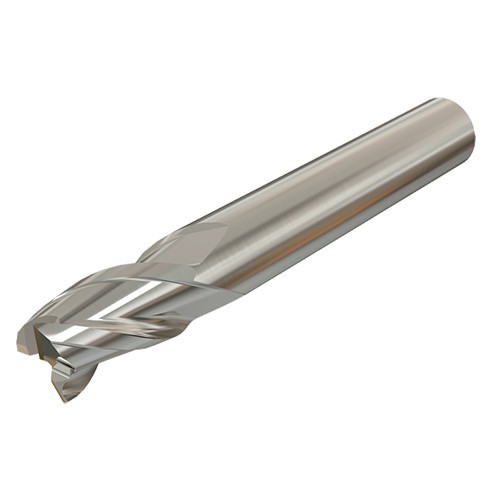

EC-E3 03-12C03E38 IC900
SQ End Mill; 3 mm Dia. × 12 mm LOC × 3 mm Shank Dia. × 38 mm OAL ; 3 FL ; 12 mm LBS ; Carbide ; AlTiN

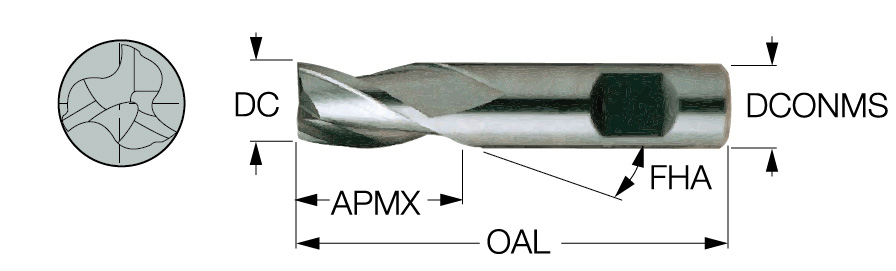

| Cutting Diameter (DC) | 3 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Grade | IC900 |
| Depth of Cut Maximum (APMX) | 12 mm | Body Half Taper Angle (BHTA) | 0 Degrees |
| Overall Length (OAL) | 38 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.04 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.01 mm/tooth |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Square | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 12 mm | Cutting Diameter Tolerance | h10 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
Product Features
| Family Description | Economical type 3 flute, 30° and 38° helix, center cutting, short and medium length solid carbide endmills. | Country of Origin | Israel |
Shipping Info
Package Weight
0.008
