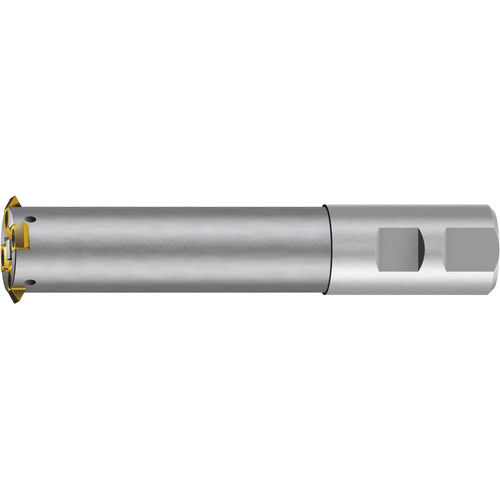

D33X95#11 BODY-Z5
| Cutting Diameter (DC) | 1.293″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 6.244″ | Application | | Internal Thread Milling | |
| Flute Count (NOF) | 5 | Series/List # | GZ340201 |
| Usable Length (LU) | 3.74″ | Tool Type | Thread Mill Holder |
| Shank Type | Weldon | Measurement Type | Inch |
Product Features
| Remarks | • Gigant-IC - Sprinter indexable insert body for large diameter threading. • Circular thread milling bodies for 4-tooth indexable inserts Gr.11 • Radial coolant channels • Economical solution for high production threading. | Country of Origin | Germany |
Shipping Info
Package Weight
0.999
