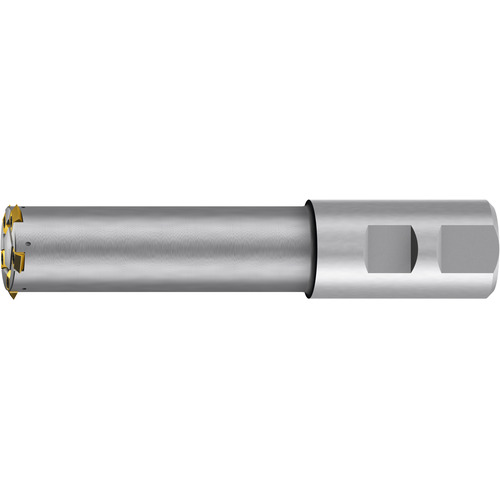

GZ341202 THRD MILL BODY
| Cutting Diameter (DC) | 40.25 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 172 mm | Application | | Internal Thread Milling | |
| Flute Count (NOF) | 5 | Series/List # | GZ341202 |
| Usable Length (LU) | 110 mm | Tool Type | Thread Mill Holder |
| Shank Type | Weldon | Measurement Type | Metric |
Product Features
| Remarks | • Gigant-IC - Sprinter indexable insert body for large diameter threading. • Circular thread milling bodies for 4-tooth indexable inserts Gr.12 • Radial coolant channels • Economical solution for high production threading. | Country of Origin | Germany |
Shipping Info
Package Weight
0.999
