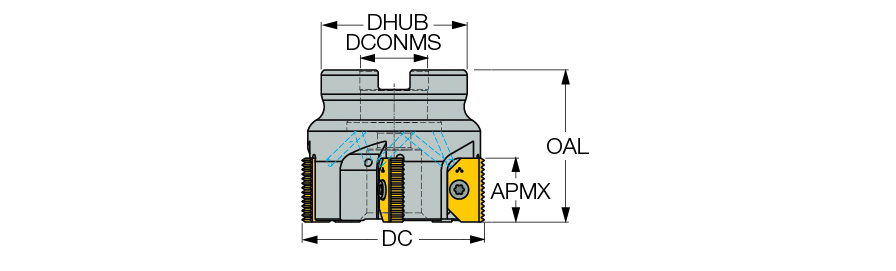

| Cutting Diameter (DC) | 100 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Position | External |
| Depth of Cut Maximum (APMX) | 40 mm | Tool Type | Indexable thread mills |
| Overall Length (OAL) | 60 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Grade | 3102179 |
| Body Material | Steel |
Product Features

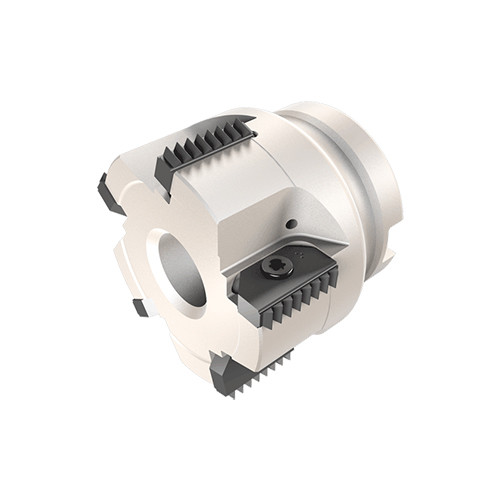

| Family Description | Thread milling multi-insert shell mills | Country of Origin | Israel |
| Remarks | For Adaptation Click on More Info |
Shipping Info
Package Weight
5.097
