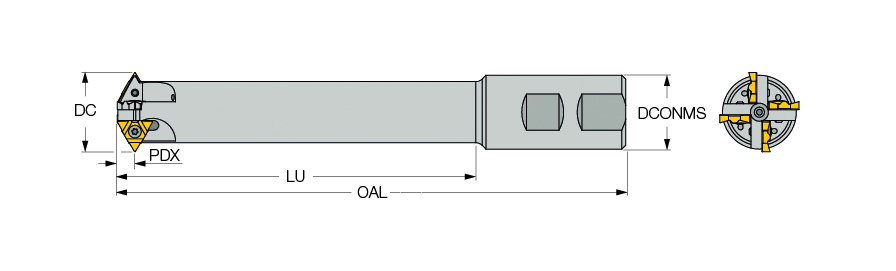

| Cutting Diameter (DC) | 23 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Overall Length (OAL) | 150 mm | Cutting Position | External |
| Flute Count (NOF) | 3 | Tool Type | Indexable thread mills |
| Usable Length (LU) | 88 mm | Measurement Type | Metric |
| Shank Type | Weldon | Grade | 3102179 |
| Body Material | Steel | Thread Type (TTP_DF2) | INT |
Product Features

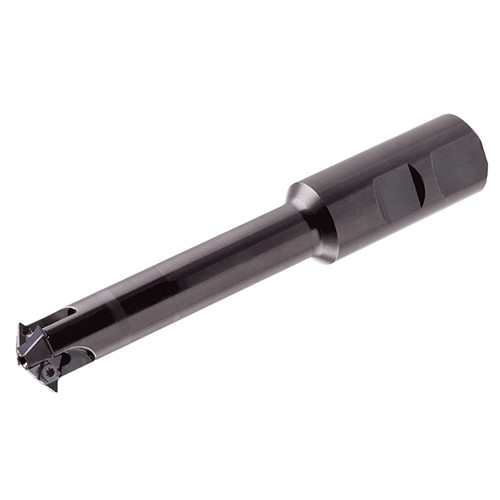

| Family Description | Indexable multi-insert threading endmills with Weldon shanks for single point U-type inserts. | Country of Origin | Israel |
| Remarks | Minimum bore should be one-third larger than D |
Shipping Info
Package Weight
0.728
