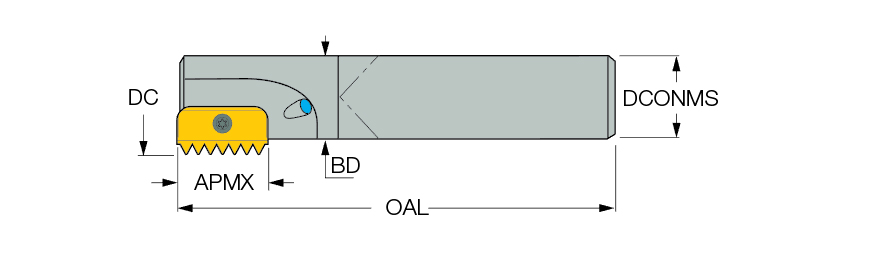

MTSR 0010 K12C
| Cutting Diameter (DC) | 9.9 mm | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Position | External |
| Depth of Cut Maximum (APMX) | 12 mm | Measurement Type | Metric |
| Overall Length (OAL) | 125 mm | Grade | 3103029 |
| Shank Type | Round |
Product Features
| Family Description | Indexable threading endmills with long cylindrical carbide shanks and coolant holes. | Country of Origin | Israel |
| Remarks | For holders with long overhang, reduce the cutting speed and feed rate, between 20 to 40% (depending on workpiece, material, pitch and overhang |
Shipping Info
Package Weight
.2180
Related Documentation
Minimum bore should be one-third larger than D. All endmills are equipped with a bore for coolant through.
