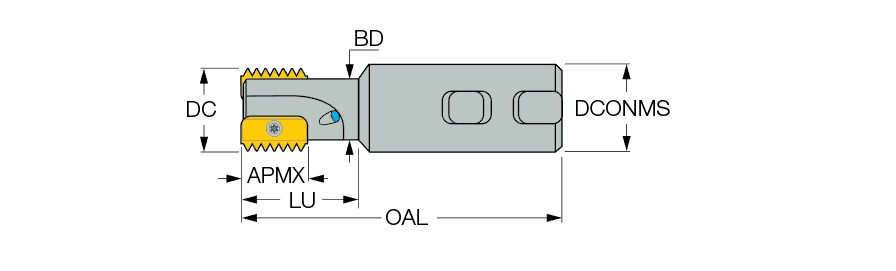

MTSR 0020 H14-2
| Cutting Diameter (DC) | 20 mm | Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Position | External |
| Depth of Cut Maximum (APMX) | 14 mm | Measurement Type | Metric |
| Overall Length (OAL) | 93 mm | Grade | 3102199 |
| Shank Type | Weldon |
Product Features
| Family Description | Double insert threading endmills with Weldon shanks. | Country of Origin | Israel |
| Remarks | For adaptation click on "More Info". Minimum bore should be one-third larger than D All endmills are equipped with a bore for internal coolant |
Shipping Info
Package Weight
.4010
Related Documentation
Minimum bore should be one-third larger than D. All endmills are equipped with a bore for coolant through.
