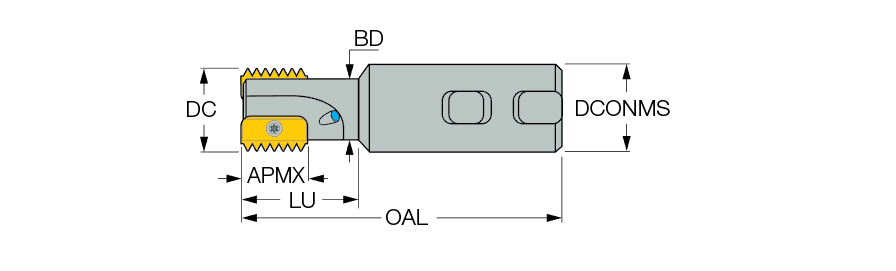

MTSR 1180 J21-2
| Cutting Diameter (DC) | 1.18″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1″ | Coolant Supply Property (CSP) | Through Hole |
| Depth of Cut Maximum (APMX) | 0.827″ | Cutting Position | External |
| Overall Length (OAL) | 4-1/4″ | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Grade | 3102188 |
Product Features
| Family Description | Double insert threading endmills with Weldon shanks. | Country of Origin | Israel |
| Remarks | For adaptation click on "More Info". Minimum bore should be one-third larger than D All endmills are equipped with a bore for internal coolant |
Shipping Info
Package Weight
.8490
Related Documentation
Minimum bore should be one-third larger than D. All endmills are equipped with a bore for coolant through.
