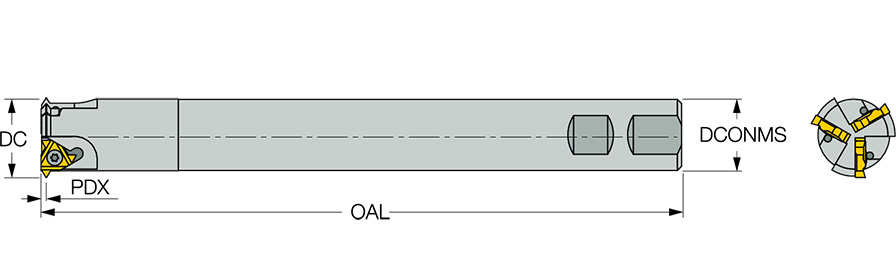

| Cutting Diameter (DC) | 0.925″ | Application | | External Thread Milling | Internal Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Cutting Position | External |
| Overall Length (OAL) | 7-1/2″ | Tool Type | Indexable thread mills |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Shank Type | Weldon | Grade | 3102179 |
| Body Material | Steel | Connection Code Machine Side (CCMS) | Weldon |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features

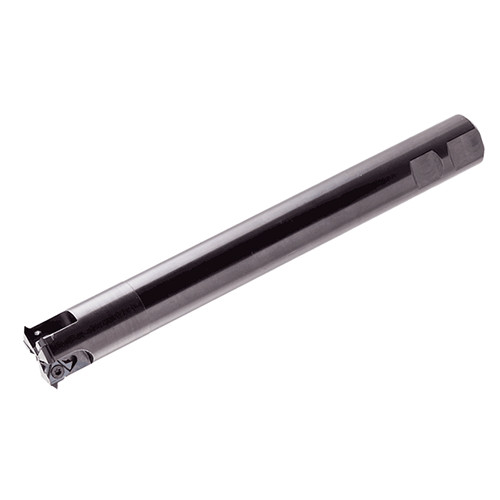

| Family Description | Indexable multi-insert threading endmills with Weldon shanks for single point inserts. | Country of Origin | Israel |
| Remarks | Minimum bore should be one-third larger than D |
Shipping Info
Package Weight
0.868
