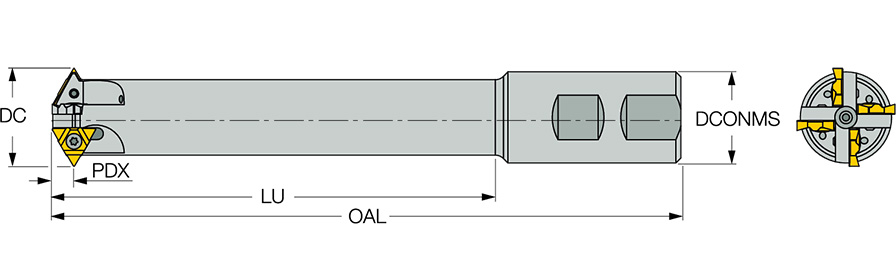

| Cutting Diameter (DC) | 0.81″ | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | External Thread Milling | Internal Thread Milling | |
| Overall Length (OAL) | 5.9″ | Cutting Position | External |
| Flute Count (NOF) | 2 | Tool Type | Indexable thread mills |
| Usable Length (LU) | 2.56″ | Measurement Type | Inch |
| Shank Type | Weldon | Grade | 3102179 |
| Body Material | Steel | Connection Code Machine Side (CCMS) | Weldon |
Product Features

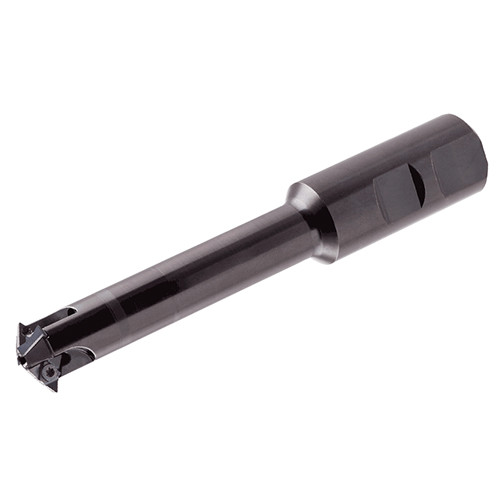

| Family Description | Indexable multi-insert threading endmills with Weldon shanks for single point U-type inserts. | Country of Origin | Israel |
| Remarks | Minimum bore should be one-third larger than D |
Shipping Info
Package Weight
0.705
