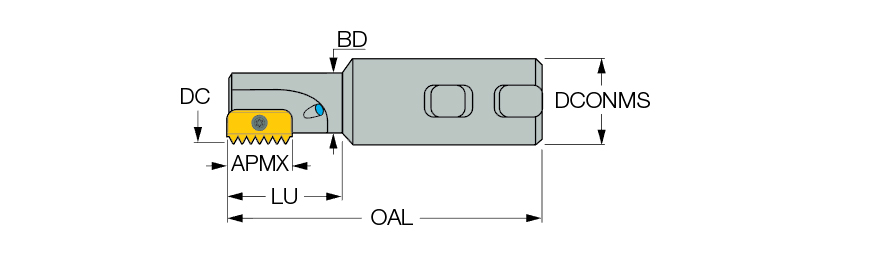

MTSR 0390 H12
| Cutting Diameter (DC) | 0.39″ | Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Cutting Position | External |
| Depth of Cut Maximum (APMX) | 0.472″ | Measurement Type | Inch |
| Overall Length (OAL) | 3.35″ | Grade | 3103027 |
| Shank Type | Weldon |
Product Features
| Family Description | Indexable threading endmills with Weldon shank and coolant holes. | Country of Origin | Israel |
| Remarks | For adaptation click on "More Info". Minimum bore should be one-third larger than D All endmills are equipped with a bore for internal coolant |
Shipping Info
Package Weight
.3420
Related Documentation
Minimum bore should be one-third larger than D. All endmills are equipped with a bore for coolant through.
