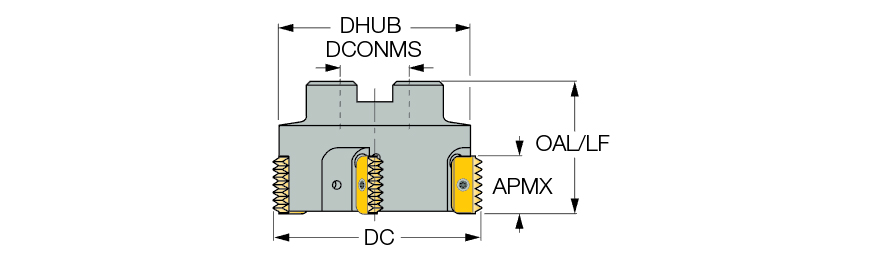

‎MTSR 2480 C21-5-.75

Item # EH3103178

Brand: Iscar

MFG #: 3181183

Legacy Part #: EH3103178

Cutting Diameter (DC)

2.48″

Master Insert Identification (MIID)

MT21

Connection Diameter Machine Side (DCONMS)

3/4″

Shank Type

Weldon

Depth of Cut Maximum (APMX)

0.827″

Coolant Supply Property (CSP)

Through Hole

Overall Length (OAL)

1.97″

Cutting Position

External

Flute Count (NOF)

Measurement Type

Inch

Hub Diameter (DHUB)

1.57″

Grade

3181183

Product Features

Family Description

Thread milling, multi-insert shell mills

Country of Origin

Israel

Remarks

For Adaptation Click on "More Info".

Package Weight

2.5360
