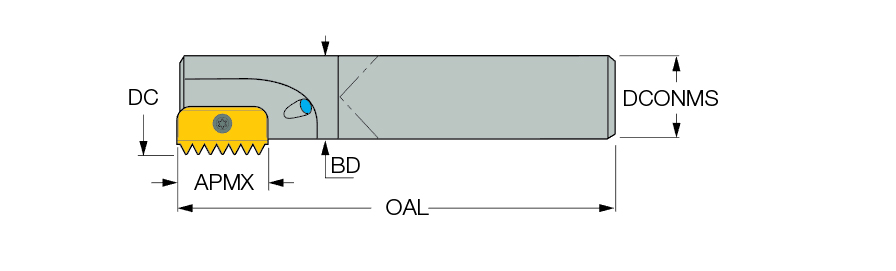

MTSR 0820 M21C
| Cutting Diameter (DC) | 0.82″ | Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Cutting Position | External |
| Depth of Cut Maximum (APMX) | 0.827″ | Measurement Type | Inch |
| Overall Length (OAL) | 8″ | Grade | 3102186 |
| Shank Type | Round |
Product Features
| Family Description | Indexable threading endmills with long cylindrical carbide shanks and coolant holes. | Country of Origin | Israel |
| Remarks | For holders with long overhang reduce the cutting speed and feed by 20 to 40% (depending on workpiece material, pitch and overhang) All endmills are equipped with bore for internal coolant |
Shipping Info
Package Weight
.8820
Related Documentation
Minimum bore should be one-third larger than D. All endmills are equipped with a bore for coolant through.
