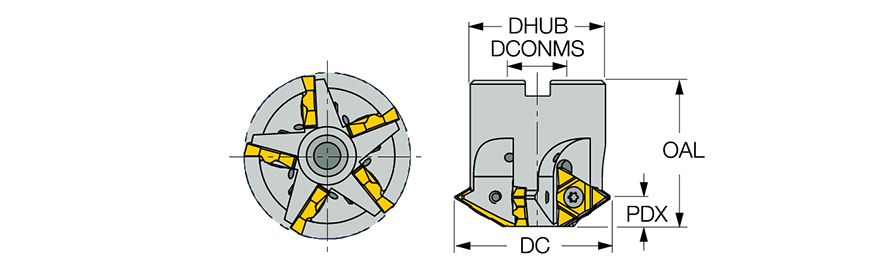

| Cutting Diameter (DC) | 1.71″ | Cutting Position | External |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Tool Type | Indexable thread mills |
| Overall Length (OAL) | 1-1/2″ | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Threads per Inch Maximum (TPIX) | 8 |
| Body Material | Steel | Threads per Inch Minimum (TPIN) | 4 |
| Coolant Supply Property (CSP) | External | Grade | 3102179 |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Type (TTP_DF2) | INT |
Product Features

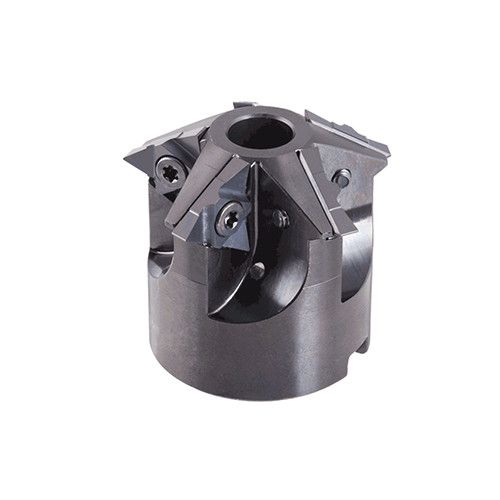

| Family Description | Indexable multi-insert threading shell mills, for single point U-type inserts. | Country of Origin | Israel |
| Remarks | Minimum bore should be one-third larger than D |
Shipping Info
Package Weight
0.220
