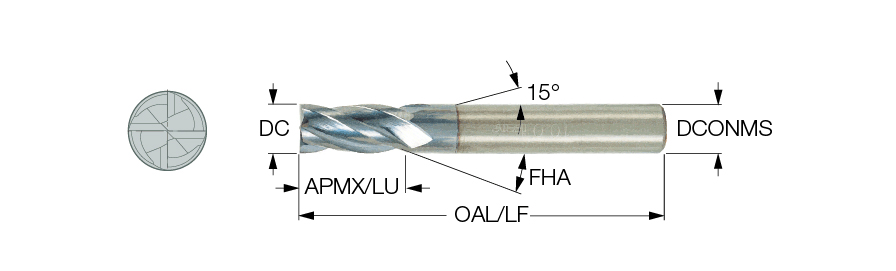

ECI-A-4 750-1.5-C750 IC300

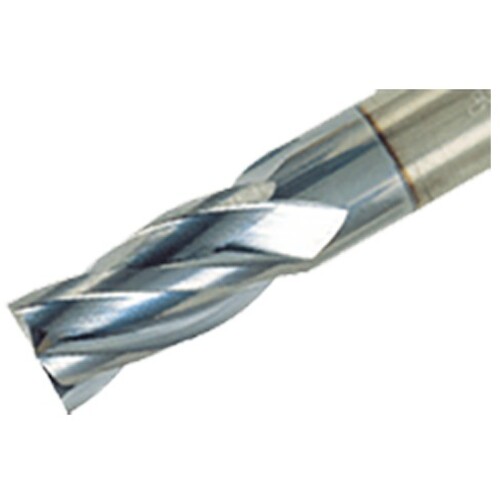

SQ End Mill; 3/4″ Dia. × 1-1/2″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; TiCN
| Cutting Diameter (DC) | 3/4″ | Application | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Grade | IC300 |
| Overall Length (OAL) | 4″ | Tool Type | Solid carbide center cutting endmills 90 Degrees |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Coating | TiCN | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Decimal Equivalent | 0.75″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Square | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
Product Features
| Family Description | 4 flute, 30° helix, medium length, solid carbide endmills. | Country of Origin | Israel |
Shipping Info
Package Length
5.00000
Package Width
2.00000
Package Height
2.00000
Package Weight
0.787
