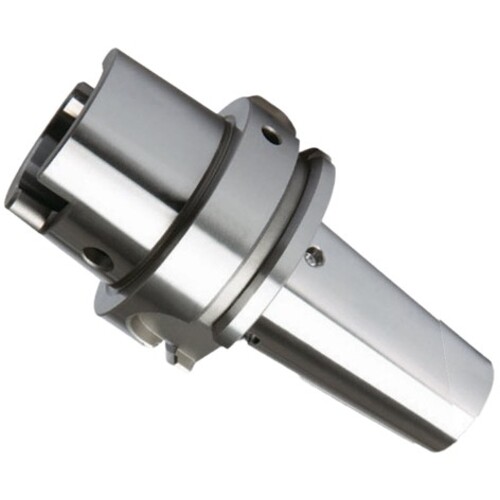

HSK100A-SFH1/2C-3.74
Shrink Fit Holder ; 1/2″ Hole Dia. ; 5.7087″ OAL ; 1.2598″ Body Dia. ; HSK-A Shank
| Connection Diameter Workpiece Side (DCONWS) | 1/2″ | Shank Type | HSK-A |
| Shank Size (SS) | HSK100A | Thread Designation Inside (THID) | M10 × 1.0 |
| Body Length (LB) | 2.5984″ | Coolant Supply Property (CSP) | Coolant Thru |
| Body Length_2 (LB_2) | 2.4016″ | Clamping Length Workpiece Side (LSCWS) | 1.9291″ |
| Body Diameter (BD) | 1.2598″ | Gage Length | 1.890″ - 2.283″ |
| Body Diameter_2 (BD_2) | 1.5748″ | Measurement Type | Inch |
| Body Taper End Diameter (BTED) | 0.9449″ | Tool Type | DUAL CONTACT SHRINK FIT HOLDER/Short Projection/ (COOLANT CHANNEL TYPE) |
| Protruding Length (LPR) | 3.74″ | Model Number | HSK100A-SFH1/2C-3.74 |
| Overall Length (OAL) | 5.7087″ |
Product Features
| Remarks |
|
Country of Origin | S.Korea |
Shipping Info
Package Length
6.3
Package Width
4.53
Package Height
4.53
Package Weight
5
