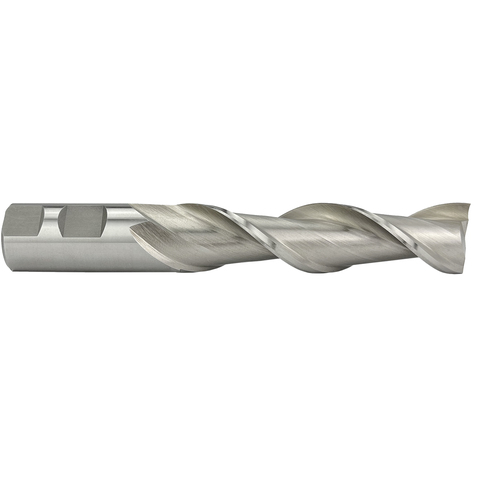

1″ Dia-6-1/2″ OAL-HSS-Hi-Helix SE EM-2 FL
SQ End Mill; 1″ Dia. × 4″ LOC × 1″ Shank Dia. × 6-1/2″ OAL ; 2 FL ; HSS ; Uncoated
| Cutting Diameter (DC) | 1″ | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 1″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 4″ | Tool Type | Single-End |
| Overall Length (OAL) | 6-1/2″ | Length Group | Aluminum Cutting |
| Cutting Edge Material | HSS | Decimal Equivalent | 1″ |
| Coating | Uncoated |
Product Features
| Remarks | •2-Flute Hi-Helix End Mills for Aluminum •High Speed Steel •Aluminum cutting end mills are designed to cut aluminum and other non-ferrous materials. The 38° helix shears the material cleanly and allows for more of the cutting flutes to be engaged with the workpieces thus eliminating chatter. | Country of Origin | China |
Shipping Info
Package Length
6.80000
Package Width
1.20000
Package Height
1.20000
Package Weight
1.1
