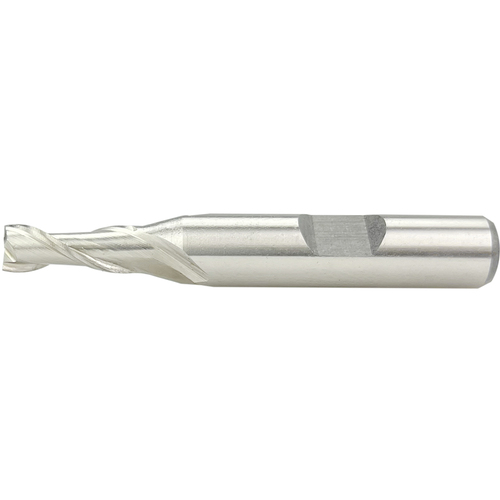

1/4″ Dia-2-1/2″ OAL-HSS-Hi-Helix SE EM-2 FL
SQ End Mill; 1/4″ Dia. × 5/8″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 2 FL ; HSS ; Uncoated
| Cutting Diameter (DC) | 1/4″ | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 5/8″ | Tool Type | Single-End |
| Overall Length (OAL) | 2-1/2″ | Length Group | Aluminum Cutting |
| Cutting Edge Material | HSS | Decimal Equivalent | 0.25″ |
| Coating | Uncoated |
Product Features
| Remarks | •2-Flute Hi-Helix End Mills for Aluminum •High Speed Steel •Aluminum cutting end mills are designed to cut aluminum and other non-ferrous materials. The 38° helix shears the material cleanly and allows for more of the cutting flutes to be engaged with the workpieces thus eliminating chatter. | Country of Origin | China |
Shipping Info
Package Length
3.10000
Package Width
.60000
Package Weight
0.066
