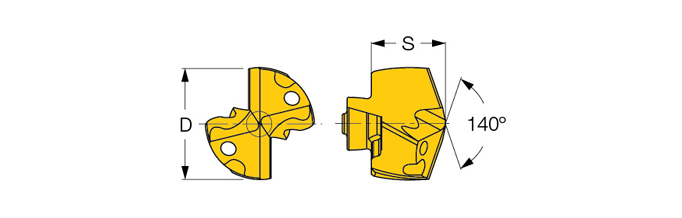

IDK 0531 IC908
| Cutting Diameter (DC) | 0.531″ | Cutting Edge Material | Carbide |
| Applicable Material | Steel|Stainless Steel|Cast Iron|Hard Materials|Hi-Temp Alloys | Measurement Type | Inch |
| Application | | Drilling | | Insert Thickness (S) | 0.331″ |
| Grade | IC908 | Point Length (PL) | 2.04 mm |
| Tool Type | Drilling Heads | Point Angle (SIG) | 140 Degrees |
| Insert Seat Size Code (SSC) | 13.0 | Coating | TiAlN |
| Functional Length (LF) | 0.331″ | Body Material | Carbide |
Product Features
| Family Description | CHAMDRILLJET exchangeable drilling bits with coolant holes, for cast-iron (ISO K). The drill head is designed with a honed cutting edge and two peripheral chamfers. | Country of Origin | IL |
Shipping Info
Package Weight
.1250
