ICP 0750 IC908

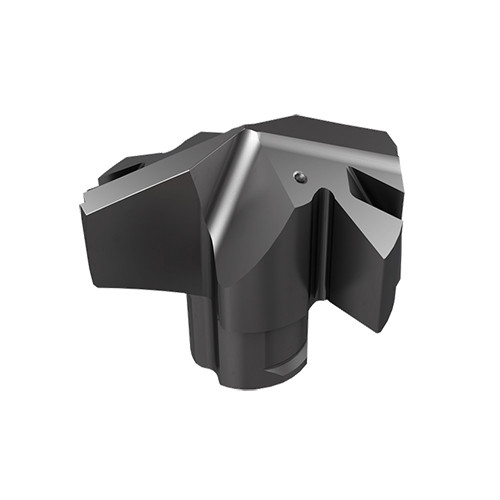

Exchangeable drilling heads for DCN drills, for machining ISO P Materials. The drill head is designed with a honed cutting edge, available in increments of .004″.

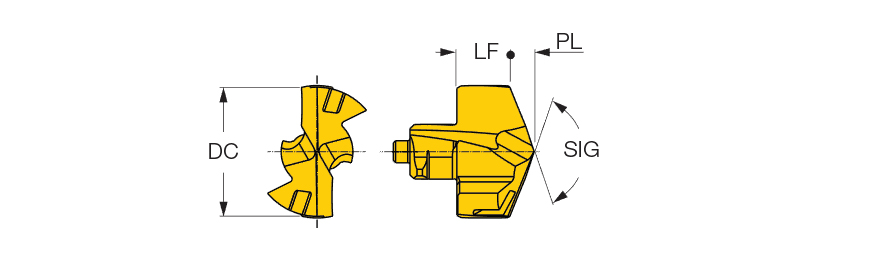

| Cutting Diameter (DC) | 3/4″ | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Chamfering | Drilling | Gundrills | | Insert Thickness (S) | 0.433″ |
| Grade | IC908 | Point Length (PL) | 0.11377″ |
| Tool Type | Drilling Heads | Point Angle (SIG) | 140 Degrees |
| Insert Seat Size Code (SSC) | 19.0 | Coating | TiAlN |
| Functional Length (LF) | 0.319″ | Body Material | Carbide |
Product Features
| Family Description | Exchangeable drilling heads for DCN drills, for machining ISO P Materials. The drill head is designed with a honed cutting edge, available in increments of .004″. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Length
2.00000
Package Width
2.00000
Package Height
1.00000
Package Weight
0.051
