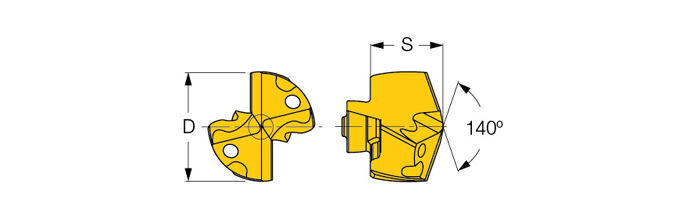

IDP 0713 IC908
| Cutting Diameter (DC) | 0.713″ | Cutting Edge Material | Carbide |
| Applicable Material | Steel |Stainless Steel |Cast Iron |Hard Materials |Hi-Temp Alloys | | Measurement Type | Inch |
| Application | | Drilling | | Insert Thickness (S) | 0.413″ |
| Grade | IC908 | Point Length (PL) | 2.04 mm |
| Tool Type | Drilling Heads | Point Angle (SIG) | 140 Degrees |
| Insert Seat Size Code (SSC) | 18.0 | Coating | TiAlN |
| Functional Length (LF) | 0.284″ | Body Material | Carbide |
Product Features
| Family Description | CHAMDRILLJET exchangeable drilling bits with coolant holes, for carbon and alloy steel (ISO P). The drill head has a honed cutting edge. | Country of Origin | Israel |
Shipping Info
Package Weight
0.044
