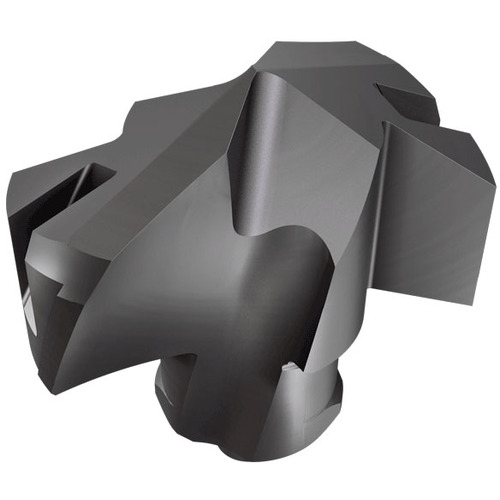

ICK 0465 IC908
Drill Head; 0.465″ Dia. × 0.26″ Thickness ; 140 Degrees ; IC908 ; Carbide ; TiAlN

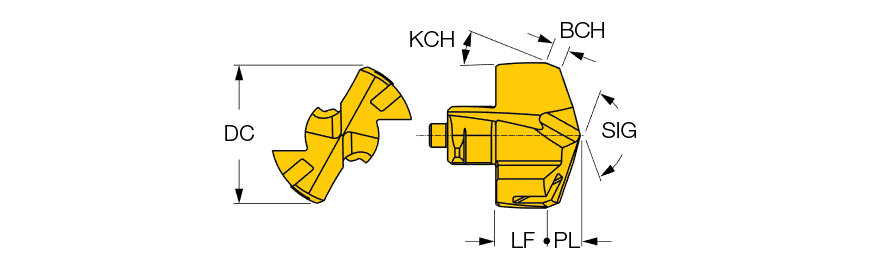

| Cutting Diameter (DC) | 0.465″ | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Chamfering | Drilling | Gundrills | | Insert Thickness (S) | 0.26″ |
| Grade | IC908 | Point Length (PL) | 0.10472″ |
| Tool Type | Drilling Heads | Point Angle (SIG) | 140 Degrees |
| Protruding Length (LPR) | 0.26″ | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 11.0 | Chamfer Angle | 30 Degrees |
| Functional Length (LF) | 0.155″ | Body Material | Carbide |
Product Features
| Family Description | Exchangeable drilling heads for DCN drills, for machining ISO K materials. The drill head is designed with a honed cutting edge, available in increments of .004″. | Country of Origin | Israel |
Shipping Info
Package Weight
0.023
