ICK 0625 IC907

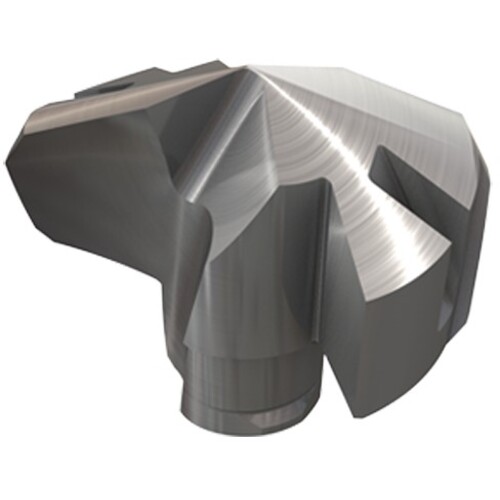

Drill Head; 0.626″ Dia. × 0.344″ Thickness ; 140 Degrees IC907 ; Carbide ; TiAlN+TiN
| Cutting Diameter (DC) | 0.626″ | Measurement Type | Inch |
| Applicable Material | Steel |Stainless Steel |Cast Iron |Hard Materials |Non Ferrous Metals |Hi Temp Alloys | | Insert Thickness (S) | 0.344″ |
| Application | | Chamfering | Drilling | Gundrill | | Point Length (PL) | 0.14133″ |
| Grade | IC907 | Point Angle (SIG) | 140 Degrees |
| Tool Type | Drilling Heads | Coating | TiAlN+TiN |
| Insert Seat Size Code (SSC) | 15.0 | Chamfer Angle | 30 Degrees |
| Functional Length (LF) | 0.202″ | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | SUMOCHAM exchangeable DCN drill heads for cast iron (ISO K materials). The drill head is designed with a honed cutting edge, available in increments of .004″. | Country of Origin | Israel |
Shipping Info
Package Weight
0.033
