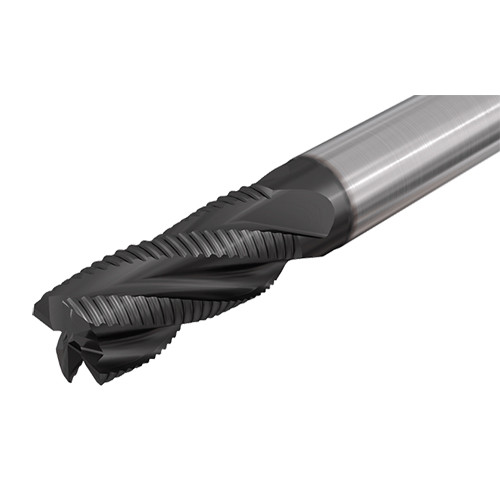

ERF250A45-6W25 IC900

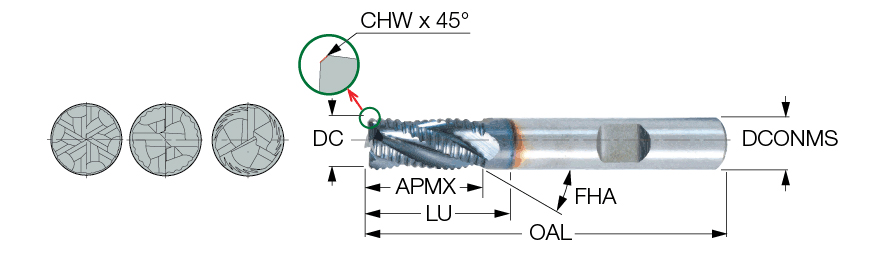

SQ End Mill; 25 mm Dia. × 45 mm LOC × 25 mm Shank Dia. × 121 mm OAL ; 6 FL ; 64 mm LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 25 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Grade | IC900 |
| Depth of Cut Maximum (APMX) | 45 mm | Neck Diameter (DN) | 24.6 mm |
| Overall Length (OAL) | 121 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide non center cutting endmills 90° |
| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.11 mm/tooth |
| Flute Count (NOF) | 6 | Minimum Feed per Tooth (fz(min)) | 0.06 mm/tooth |
| Flute Helix Angle (FHA) | 30 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Body Material | Carbide |
| End Shape | Chamfer | Style | Solid Carbide Non Center Cutting Endmills 90° |
| Usable Length (LU) | 64 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Weldon |
| Application | | Counter Boring | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | e9 |
| Corner Chamfer Width (CHW) | 0.6 mm | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 3, 4, 6 flute, 30° and 38° helix, fine pitch, medium length solid carbide roughing endmills. Used for maximum stock removal of alloy steel. | ItemRemark | No center cutting @Cannot be used for plunging application |
| Country of Origin | Israel |
Shipping Info
Package Weight
1.746
