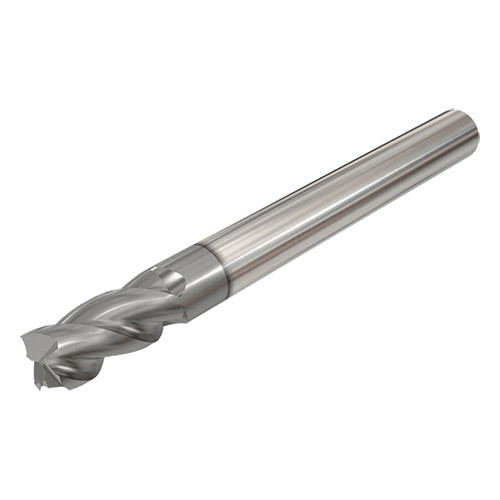

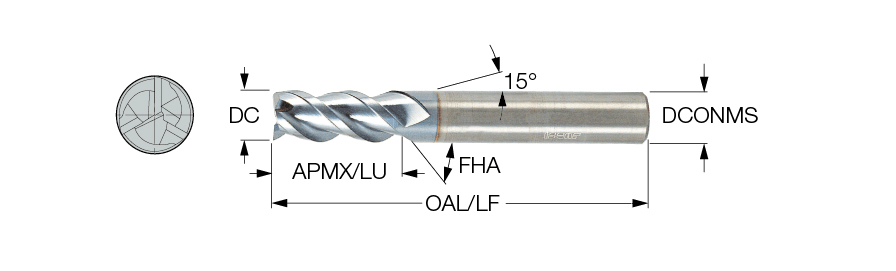

ECI-B-3 250-625-C250 IC900
SQ End Mill; 1/4″ Dia. × 0.62″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 0″ RE ; 3 FL ; 0.62″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/4″ | Corner Radius (RE) | 0″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 0.62″ | Grade | IC900 |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.003 ″/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.25″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 0.62″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 3 flute, 45° helix, medium length, slot / drill solid carbide endmills. | Country of Origin | S.Korea |
| Remarks | Excellent for deep slotting and shouldering |
Shipping Info
Package Weight
0.006
