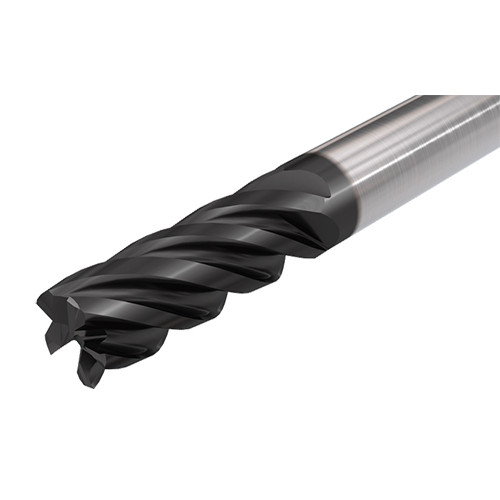

ECI-E5R750-1.87C75CF06 IC900
SQ End Mill; 3/4″ Dia. × 1.87″ LOC × 3/4″ Shank Dia. × 5″ OAL ; 0.06″ RE ; 5 FL ; 1.87″ LBS ; Carbide ; AlTiN

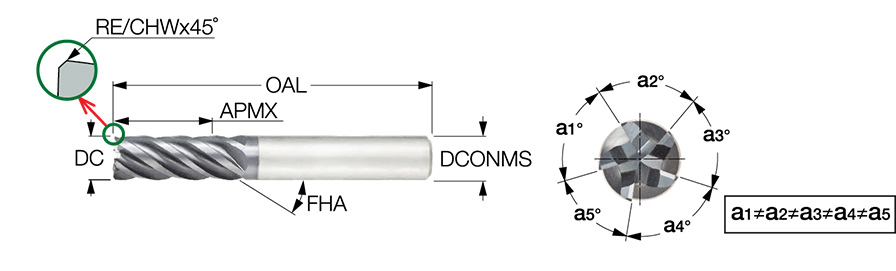

| Cutting Diameter (DC) | 3/4″ | Corner Radius (RE) | 0.06″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 1.87″ | Grade | IC900 |
| Overall Length (OAL) | 5″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.007 ″/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Count (NOF) | 5 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.75″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1.87″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 5 flute, 38° helix with variable pitch for roughing and finishing operations. High material removal rates chatter free. Used for machining alloyed and stainless steel, titanium and exotic materials. Full slot milling - up to 1XD. | Country of Origin | Israel |
Shipping Info
Package Weight
1.016
