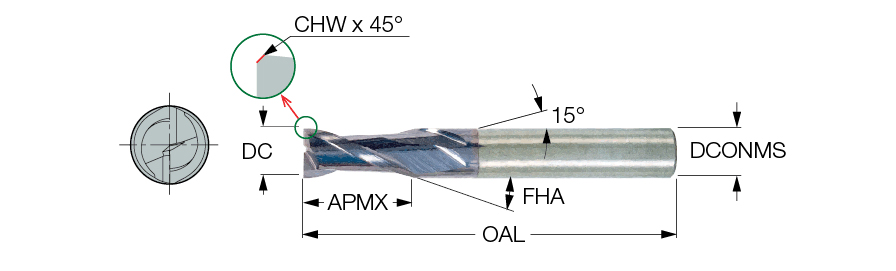

ECCI-A-2 375-1.0-C375 IC300
| Cutting Diameter (DC) | 3/8″ | Application | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Corner Chamfer Width (CHW) | .006″ |
| Depth of Cut Maximum (APMX) | 1″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 2-1/2″ | Grade | IC300 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90 Degrees |
| Coating | TiCN | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Flute Count (NOF) | 2 | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Flute Helix Angle (FHA) | 30 Degrees | Length Group | Medium |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Chamfer | Decimal Equivalent | 0.375″ |
| Applicable Material | Steel |Stainless Steel |Hi Temp Alloys | | Measurement Type | Inch |
Product Features
| Family Description | 2 flute 30° helix, center cutting medium length solid carbide endmills with chamfered corners. | Country of Origin | Israel |
Shipping Info
Package Weight
0.120
