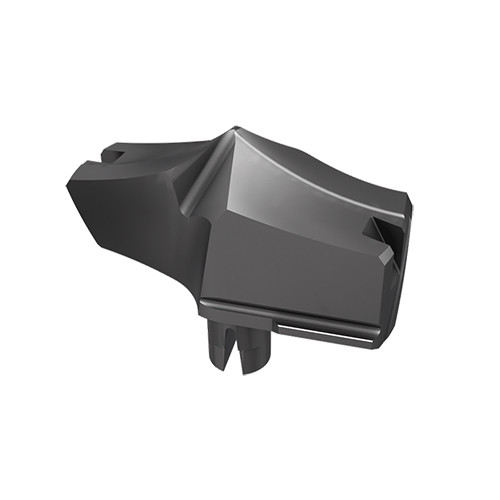

HFP 1335-SPADE IQ IC908
Drill Head; 1.335″ Dia. × 0.728″ Thickness ; 137 Degrees ; IC908 ; Carbide ; TiAlN

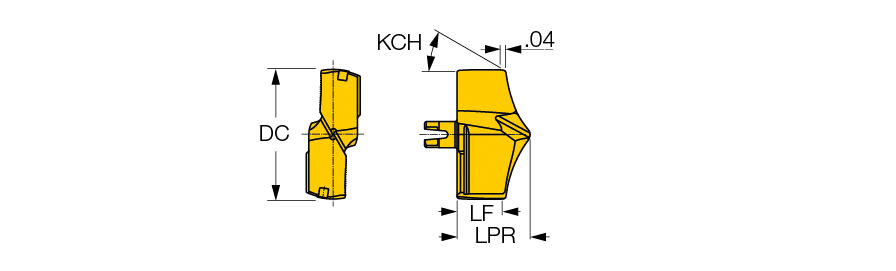

| Cutting Diameter (DC) | 1.335″ | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Thickness (S) | 0.728″ |
| Application | | Drilling | | Point Length (PL) | 0.28858″ |
| Grade | IC908 | Point Angle (SIG) | 137 Degrees |
| Tool Type | Drilling Heads | Coating | TiAlN |
| Protruding Length (LPR) | 0.728″ | Corner Chamfer Width (CHW) | 0.039″ |
| Insert Seat Size Code (SSC) | 33.0 | Chamfer Angle | 30 Degrees |
| Functional Length (LF) | 0.441″ | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Exchangeable DFN drill heads for carbon and alloy steel (ISO P) and cast iron (ISO K). The drill head is designed with a honed cutting edge, available in increments of .0197″. | Country of Origin | Israel |
| Remarks | Advance self centering, and high surface finish Intermediate sizes can be supplied on request |
Shipping Info
Package Weight
0.147
