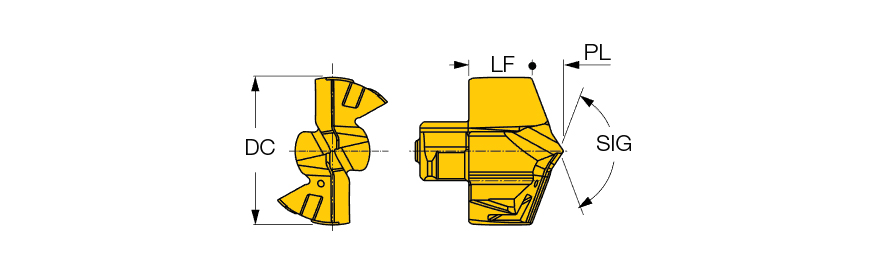

| Cutting Diameter (DC) | 9 mm | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Application | | Chamfering | Drilling | Gundrills | | Point Length (PL) | 1.91 mm |
| Grade | IC908 | Point Angle (SIG) | 136 Degrees |
| Protruding Length (LPR) | 5.8 mm | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 9.0 | Body Material | Carbide |
| Functional Length (LF) | 3.89 mm |
Product Features
| Family Description | Exchangeable double margin & self-centering drilling heads for DCN drills, for machining ISO P and ISO K materials with high surface finish results. | Country of Origin | Israel |
| Remarks | Provides high surface finish of up to 1.6 Ra hole cylindricity and straightness of up to 0.05 mm |
Shipping Info
Package Weight
0.017
