HCP 1142-IQ IC908

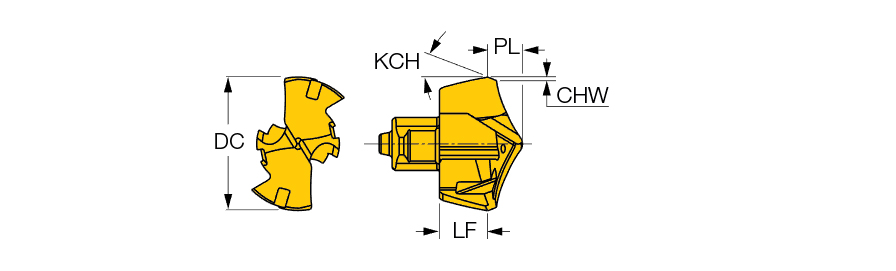

Drill Head; 29 mm Dia. × 16.8 mm Thickness ; 137 Degrees ; IC908 ; Carbide ; TiAlN
| Cutting Diameter (DC) | 29 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Thickness (S) | 16.8 mm |
| Application | | Chamfering | Drilling | Gundrills | | Point Length (PL) | 6.64 mm |
| Grade | IC908 | Point Angle (SIG) | 137 Degrees |
| Tool Type | Drilling Heads | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 29.0 | Corner Chamfer Width (CHW) | 0.66 mm |
| Functional Length (LF) | 10.16 mm | Chamfer Angle | 30 Degrees |
| Cutting Edge Material | Carbide | Body Material | Carbide |
Product Features
| Family Description | Exchangeable self-centering drilling heads with a unique cutting edge profile which enables drilling up to 12XD without requiring a pilot hole operation. Can be used on ISO P and ISO K Materials. | Country of Origin | Israel |
| Remarks | Advance Self-Centering and high surface finish |
Shipping Info
Package Weight
0.11
