ICP 057 IC908

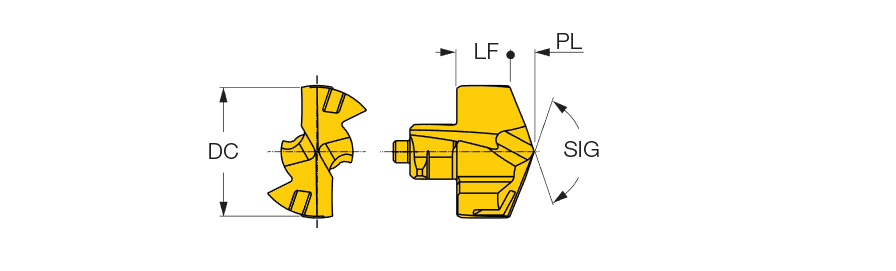

Drill Head; 5.7 mm Dia. × 3.85 mm Thickness ; 140 Degrees ; IC908 ; Carbide ; TiAlN
| Cutting Diameter (DC) | 5.7 mm | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Application | | Chamfering | Drilling | Gundrills | | Insert Thickness (S) | 3.85 mm |
| Grade | IC908 | Point Length (PL) | 0.85 mm |
| Tool Type | Drilling Heads | Point Angle (SIG) | 140 Degrees |
| Insert Seat Size Code (SSC) | 5.5 | Coating | TiAlN |
| Functional Length (LF) | 3 mm | Body Material | Carbide |
Product Features
| Family Description | Exchangeable drilling heads for DCN drills, for machining ISO P Materials. The drill head is designed with a honed cutting edge, available in increments of 0.1 mm. | Country of Origin | Israel |
Shipping Info
Package Weight
0.022
