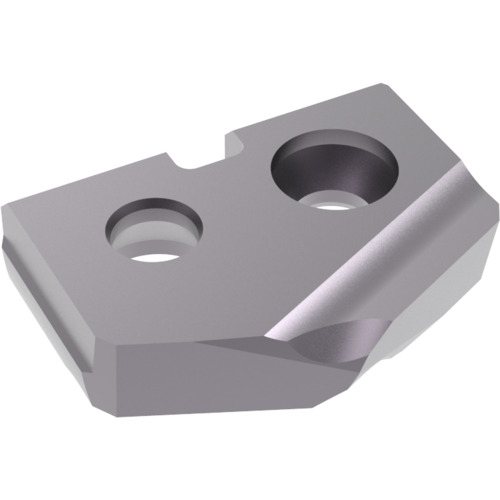

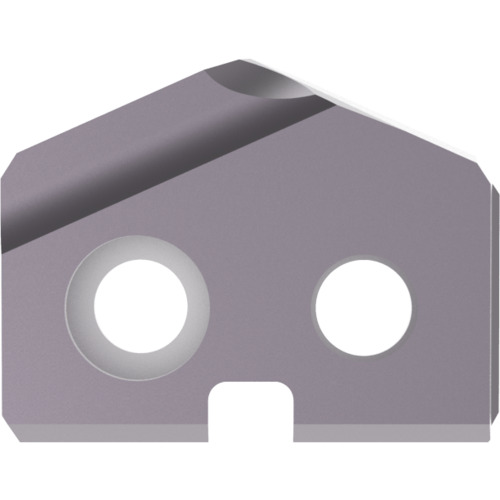

1C3ZA-12.5-CI - 12.5 mm Dia. - Series Z - Carbide - Cast Iron Geometry -T-A Insert - TiAlN
Drill Head; 12.5 mm Dia. × 3/32″ Thickness ; 132 Degrees ; C3 (K10) ; Carbide ; TiAlN ; Series Z
| Cutting Diameter (DC) | 12.5 mm | Insert Thickness (S) | 3/32″ |
| Grade | C3 (K10) | Point Angle (SIG) | 132 Degrees |
| Tool Type | T-A Drill Inserts | Coating | TiAlN |
| Cutting Edge Material | Carbide | Series/List # | Z |
| Measurement Type | Metric |
Product Features
| Remarks | •Series Y - 0 •AMEC's C3 Carbide T-A® Drill Inserts for cast iron applications. •AMEC's C3 Carbide T-A® Drill Inserts. AMEC's cast iron geometry is specifically designed for use in gray and white cast irons. This special geometry provides exceptional edge strength and tool life. TiAIN Titanium Aluminum Nitride coating is recommmended. High machine rigidity is required. Includes AMEC's SK2 special corner preparation, designed to increased tool life by providing efficient, uniform heat dispersion at the insert corners. | Country of Origin | USA |
Shipping Info
Package Weight
0.003
