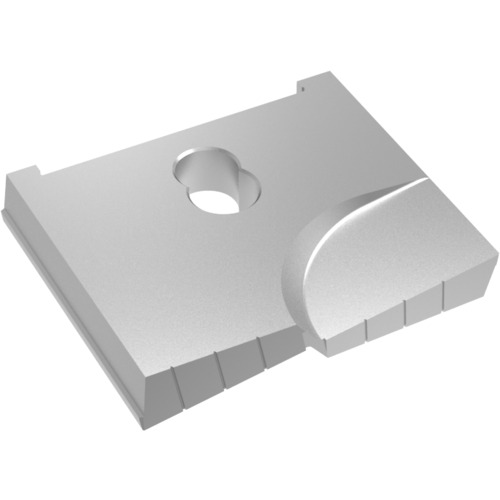

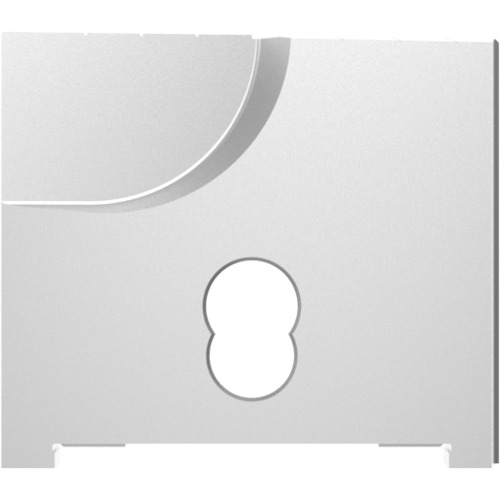

10484-0412 - 4 3/8″ Dia. - Series H1 - High Speed Steel Universal Insert - Uncoated
Drill Head; 4-3/8″ Dia. × 11/16″ Thickness ; 132 Degrees ; HSS ; Uncoated ; Series H1
| Cutting Diameter (DC) | 4-3/8″ | Insert Thickness (S) | 11/16″ |
| Tool Type | Universal Spade Drill Blades | Point Angle (SIG) | 132 Degrees |
| Protruding Length (LPR) | 3-11/16″ | Coating | Uncoated |
| Cutting Edge Material | HSS | Series/List # | H1 |
| Measurement Type | Inch |
Product Features
| Remarks | •Universal spade drill blades • Flat Bottom CPM-4 high speed steel • Universal style and high performance spade drills use the same holders • Universal style spade drills and holders are interchangeable with most other manufacturer's products • Flat bottom drills are used as a secondary finishing tool for bottoming and finishing flat bottom holes | Country of Origin | USA |
Shipping Info
Package Weight
2.750
