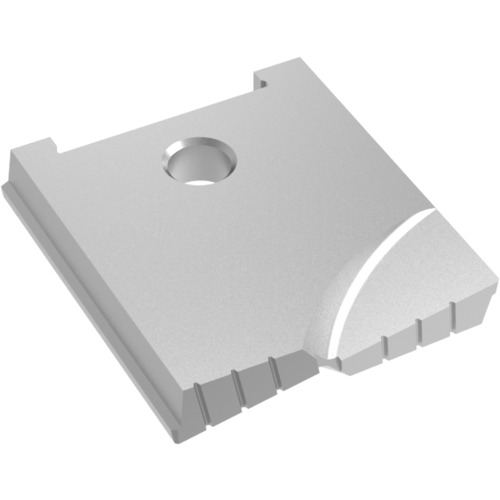

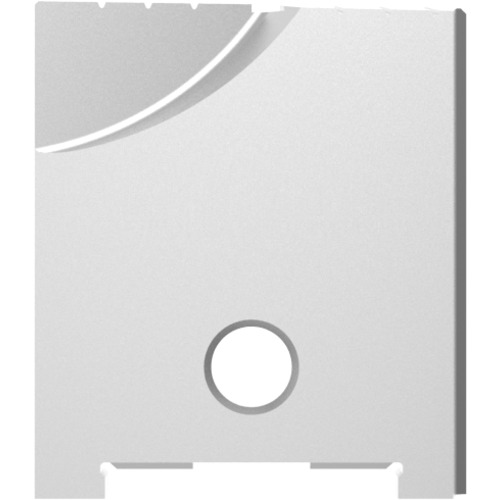

10434-0128 - 1 7/8″ Dia. - Series C - High Speed Steel Universal Insert - Uncoated
Drill Head; 1-7/8″ Dia. × 5/16″ Thickness ; 132 Degrees ; HSS ; Uncoated ; Series C
| Cutting Diameter (DC) | 1-7/8″ | Insert Thickness (S) | 5/16″ |
| Tool Type | Universal Spade Drill Blades | Point Angle (SIG) | 132 Degrees |
| Protruding Length (LPR) | 2″ | Coating | Uncoated |
| Cutting Edge Material | HSS | Series/List # | C |
| Measurement Type | Inch |
Product Features
| Remarks | •Universal spade drill blades • Flat Bottom CPM-4 high speed steel • Universal style and high performance spade drills use the same holders • Universal style spade drills and holders are interchangeable with most other manufacturer's products • Flat bottom drills are used as a secondary finishing tool for bottoming and finishing flat bottom holes | Country of Origin | USA |
Shipping Info
Package Length
2.70000
Package Width
3.90000
Package Height
.80000
Package Weight
0.309
