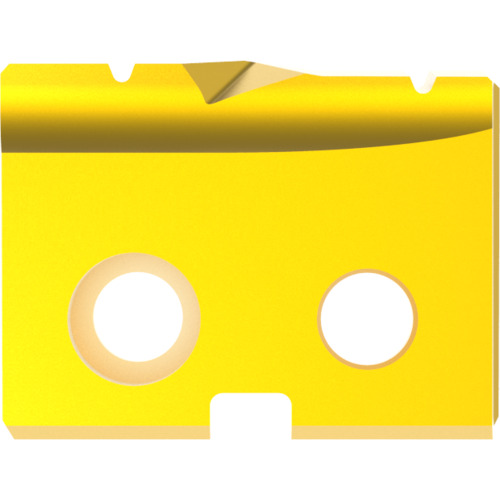

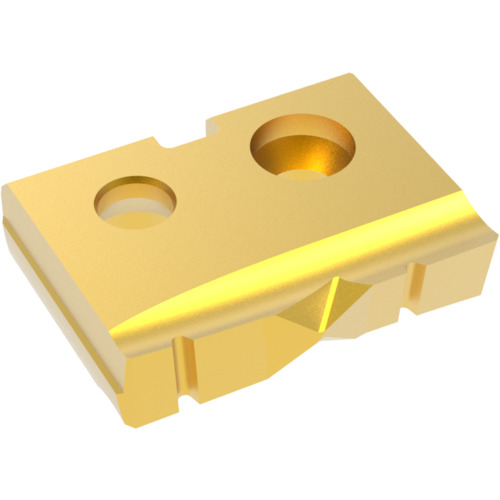

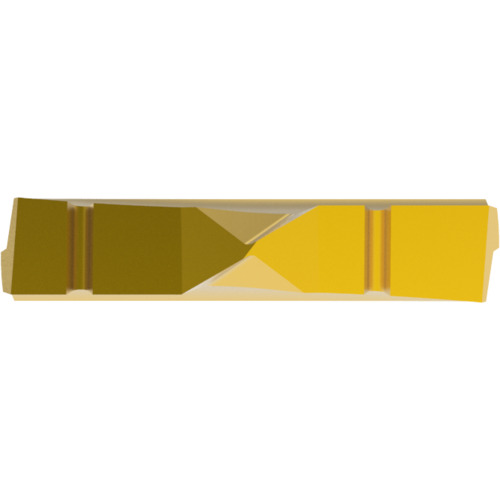

150T-0020-FB - 5/8″ Dia. - Series 0 - Super Cobalt - Flat Bottom -T-A Insert - TiN
Drill Head; 5/8″ Dia. × 1/8″ Thickness ; Flat Bottom ; Cobalt ; TiN ; Series 0
| Cutting Diameter (DC) | 5/8″ | Insert Thickness (S) | 1/8″ |
| Tool Type | T-A Drill Inserts | Point Angle (SIG) | Flat Bottom |
| Cutting Edge Material | Cobalt | Coating | TiN |
| Measurement Type | Inch | Series/List # | 0 |
Product Features
| Remarks | •Series 0 •Super Cobalt Flat Bottom T-A® Drill Inserts are also available with TiAIN or TiCN coating • FLAT BOTTOM drills are used as a secondary -finishing tool for bottoming and for flat bottom -finishing. • FLAT BOTTOM Drill Inserts are provided with chip breakers unless otherwise specified. •AMEC Flat Bottom Drill Inserts are manufactured under U.S.Patent No. 6,135,68. | Country of Origin | USA |
Shipping Info
Package Length
.62000
Package Width
.44000
Package Height
.12000
Package Weight
0.009
