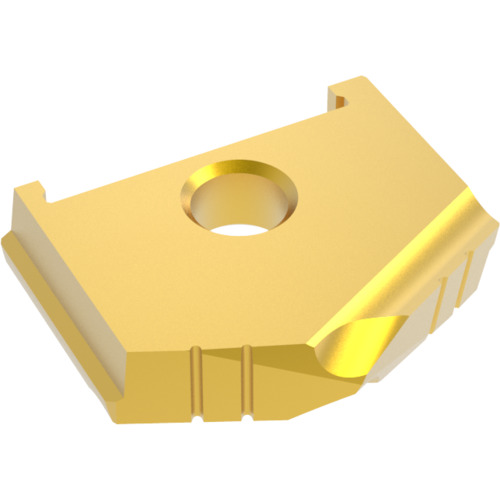

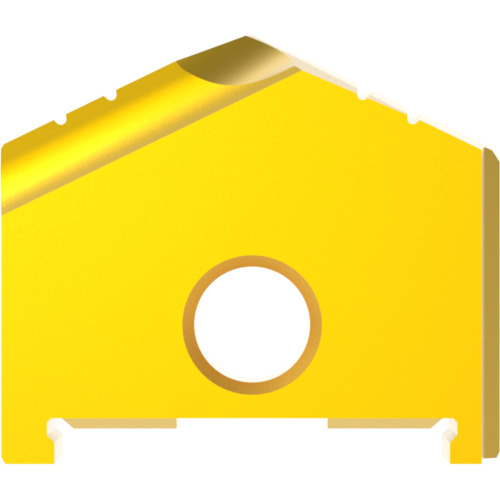

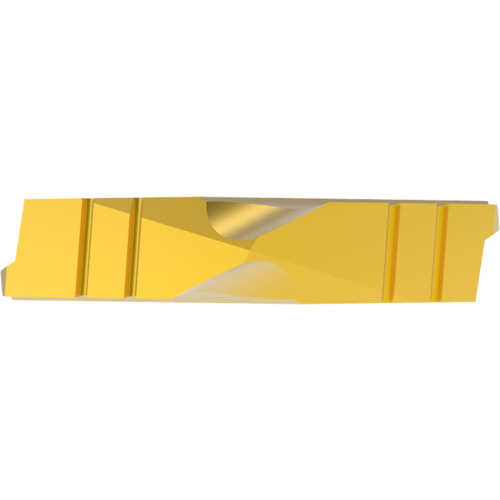

1022T-0117 - 1 17/32″ Dia. - Series B - High Speed Steel High Performance Insert - TiN
Drill Head; 1-17/32″ Dia. × 9/32″ Thickness ; 132 Degrees ; HSS ; TiN ; Series B
| Cutting Diameter (DC) | 1-17/32″ | Insert Thickness (S) | 9/32″ |
| Tool Type | High Performance Spade Drill Blades | Point Angle (SIG) | 132 Degrees |
| Protruding Length (LPR) | 1-3/32″ | Coating | TiN |
| Cutting Edge Material | HSS | Series/List # | B |
| Measurement Type | Inch |
Product Features
| Remarks | •High performance spade drill blades •TiN coated 130° •Offers higher production levels than universal style spade drills •Reduced length and unique geometry improves rigidity while coating increases tool life and performance?increased performance levels of 100% to 500% are not uncommon • High performance spade drills use the same holders as the universal style blades • High performance spade drills and holders are interchangeable with most other manufacturer's products • TiN coated blades increase tool life 3 to 10 times that of uncoated tools | Country of Origin | USA |
Shipping Info
Package Weight
.099
