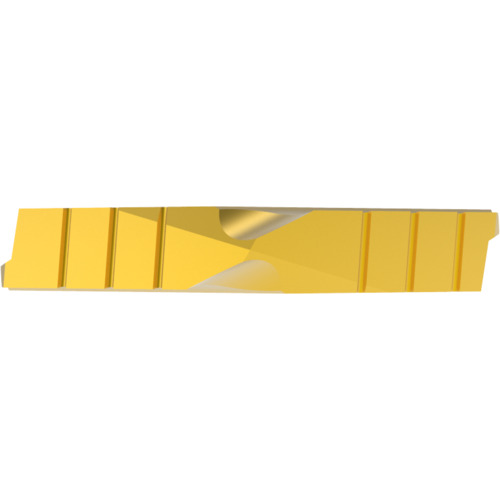

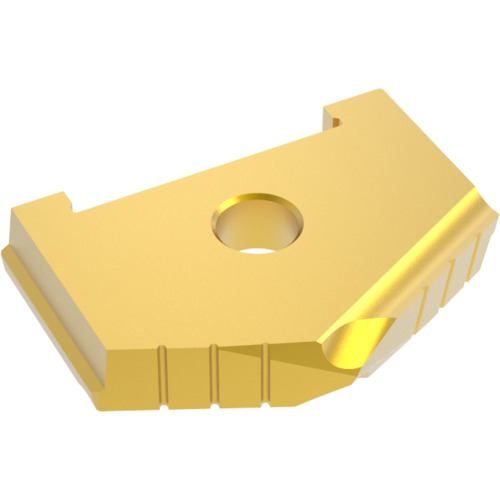

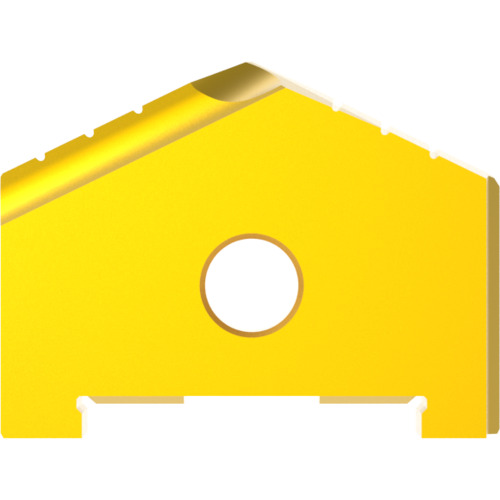

1023T-0125 - 1 25/32″ Dia. - Series C - High Speed Steel High Performance Insert - TiN
Drill Head; 1-25/32″ Dia. × 5/16″ Thickness ; 132 Degrees ; HSS ; TiN ; Series C
| Cutting Diameter (DC) | 1-25/32″ | Insert Thickness (S) | 5/16″ |
| Tool Type | High Performance Spade Drill Blades | Point Angle (SIG) | 132 Degrees |
| Protruding Length (LPR) | 1-9/32″ | Coating | TiN |
| Cutting Edge Material | HSS | Series/List # | C |
| Measurement Type | Inch |
Product Features
| Remarks | •High performance spade drill blades •TiN coated 130° •Offers higher production levels than universal style spade drills •Reduced length and unique geometry improves rigidity while coating increases tool life and performance?increased performance levels of 100% to 500% are not uncommon • High performance spade drills use the same holders as the universal style blades • High performance spade drills and holders are interchangeable with most other manufacturer's products • TiN coated blades increase tool life 3 to 10 times that of uncoated tools | Country of Origin | USA |
Shipping Info
Package Length
3.00000
Package Width
4.00000
Package Height
.77200
Package Weight
0.156
