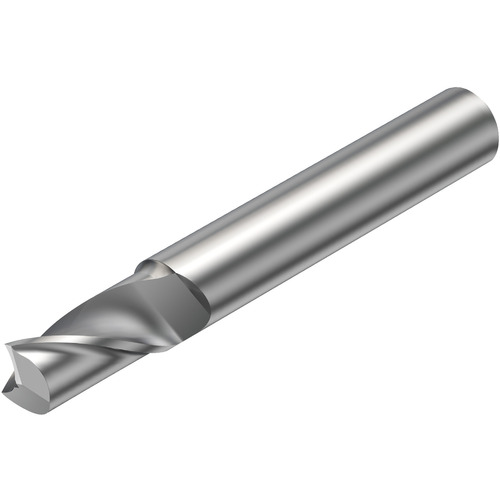

2P230-0500-NA H10F COROMILL PLURA
Square End Mill; 5 mm Dia. × 10 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 1 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 5 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 10 mm | Corner Radius (RE) | 0 mm |
| Overall Length (OAL) | 57 mm | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Length Group | 2D |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 1 | Decimal Equivalent | 0.1969″ |
| Flute Helix Angle (FHA) | CW|30 Degrees | Series/List # | 2P230-NA |
| Shank Type | Round |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.066
