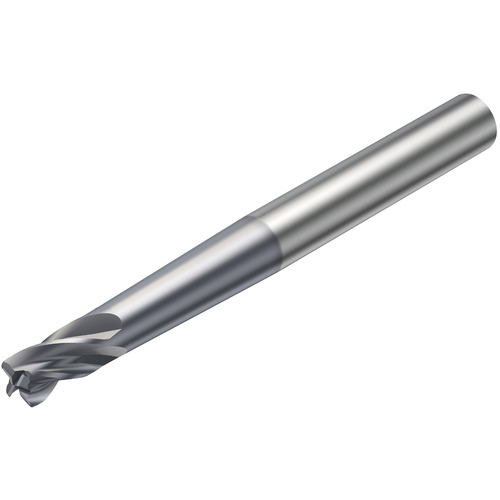

R216.22-03030BAP03G 1610 COROMILL PLURA
Corner Radius End Mill; 3 mm Dia. × 3 mm LOC × 6 mm Shank Dia. × 80 mm OAL ; 2 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 3 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 3 mm | Applicable Material | | Steel | Hard Materials | |
| Overall Length (OAL) | 80 mm | Corner Radius (RE) | 0.5 mm |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlTiN | Length Group | 1D |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|30 Degrees | Decimal Equivalent | 0.1181″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.079
