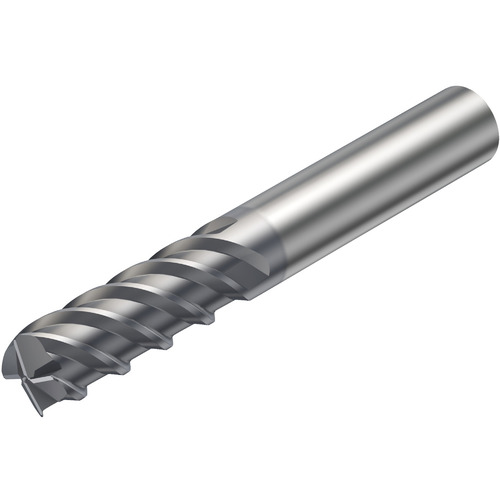

R215.H4-08050CAC02H 1610 COROMILL PLURA
Corner Radius End Mill; 8 mm Dia. × 20 mm LOC × 8 mm Shank Dia. × 63 mm OAL ; 4 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 8 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 8 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 20 mm | Applicable Material | | Hard Materials | |
| Overall Length (OAL) | 63 mm | Corner Radius (RE) | | 1 mm | 12 mm | |
| Cutting Edge Material | Carbide | Length Group | 2.5D |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.315″ |
| Flute Helix Angle (FHA) | CW|50 Degrees |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.132
