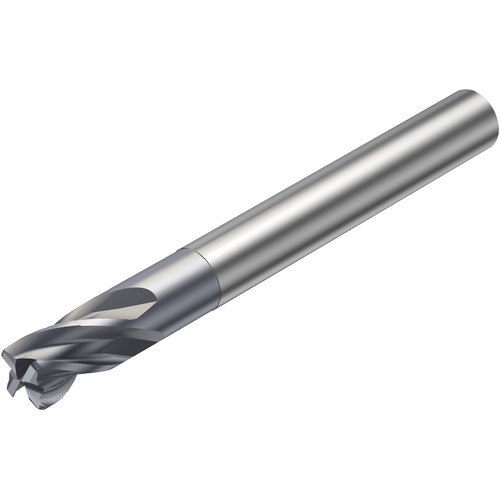

RA216.24-1630DAK04G 1610 COROMILL PLURA
Corner Radius End Mill; 1/4″ Dia. × 1″ LOC × 1/4″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 1/4″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1″ | Applicable Material | | Steel | Hard Materials | |
| Overall Length (OAL) | 3″ | Corner Radius (RE) | 0.063″ |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlTiN | Length Group | 4D |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|30 Degrees | Decimal Equivalent | 0.25″ |
Product Features
| Country of Origin | Italy |
Shipping Info
Package Weight
.091
