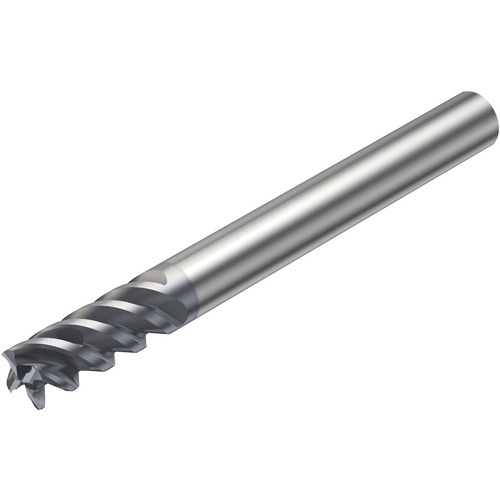

R216.34-10050-AK22P 1620 COROMILL PLURA
Square End Mill; 10 mm Dia. × 22 mm LOC × 10 mm Shank Dia. × 100 mm OAL ; 4 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 10 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 10 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 22 mm | Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Overall Length (OAL) | 100 mm | Corner Chamfer Width (CHW) | 0.1 mm |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlTiN | Length Group | 2.2D |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|50 Degrees | Decimal Equivalent | 0.3937″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.259
