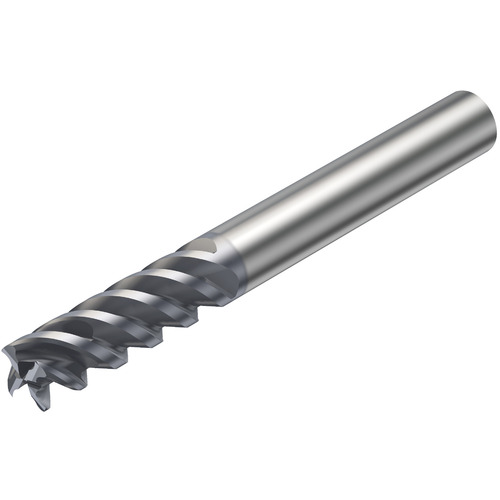

RA216244850DAK36P 1620
Corner Radius End Mill; 3/4″ Dia. × 2-1/4″ LOC × 3/4″ Shank Dia. × 5″ OAL ; 4 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 3/4″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 2-1/4″ | Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Overall Length (OAL) | 5″ | Corner Radius (RE) | 0.063″ |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlTiN | Length Group | 3D |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|50 Degrees | Decimal Equivalent | 0.75″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
1.03
