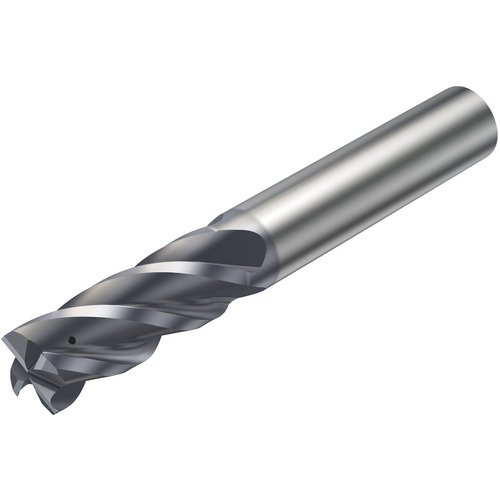

2P342-2000-CMA 1740 COROMILL PLURA
SQ End Mill; 20 mm Dia. × 42 mm LOC × 20 mm Shank Dia. × 104 mm OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 20 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 20 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 42 mm | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 104 mm | Corner Chamfer Width (CHW) | 0.25 mm |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlTiN | Length Group | 2.1D |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Helix Angle (FHA) | CW|38 Degrees | Decimal Equivalent | 0.7874″ |
Product Features
| Country of Origin | Italy |
Shipping Info
Package Weight
0.877
