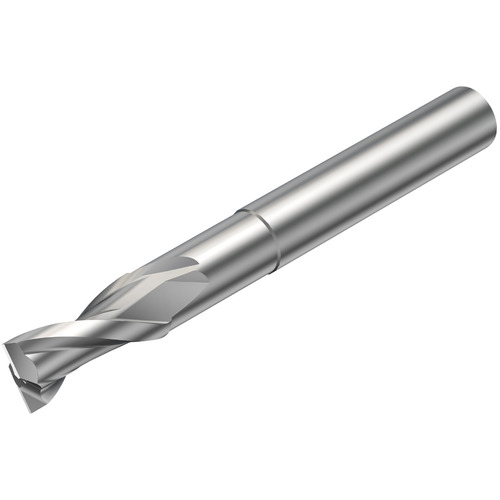

2P120-0600-NC H10F COROMILL PLURA
Square End Mill; 6 mm Dia. × 28 mm LOC × 6 mm Shank Dia. × 65 mm OAL ; 2 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 6 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 28 mm | Corner Radius (RE) | 0 mm |
| Overall Length (OAL) | 65 mm | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Length Group | 4.7D |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.2362″ |
| Flute Helix Angle (FHA) | CW|25 Degrees | Series/List # | 2P120-NC |
| Shank Type | Round |
Product Features
| Country of Origin | Italy |
Shipping Info
Package Weight
.075
